N scale Southern Pacific 100-C-3/4/5/6 tender 3d printed kit

A must-have upgrade for any Southern Pacific modeler.
The SP 100-C-3 tender was one of the most widely used tenders across the railroad’s steam roster—appearing behind everything from Consolidations to Mountains and even some early Cab Forwards. This N scale kit faithfully recreates the prototype in high-resolution 3D-printed resin and is designed with smart features to make installation and customization straightforward.
NEW: Now Available to purchase prototype Trucks with each tender ($5 off buying them separately)
Kit Features:

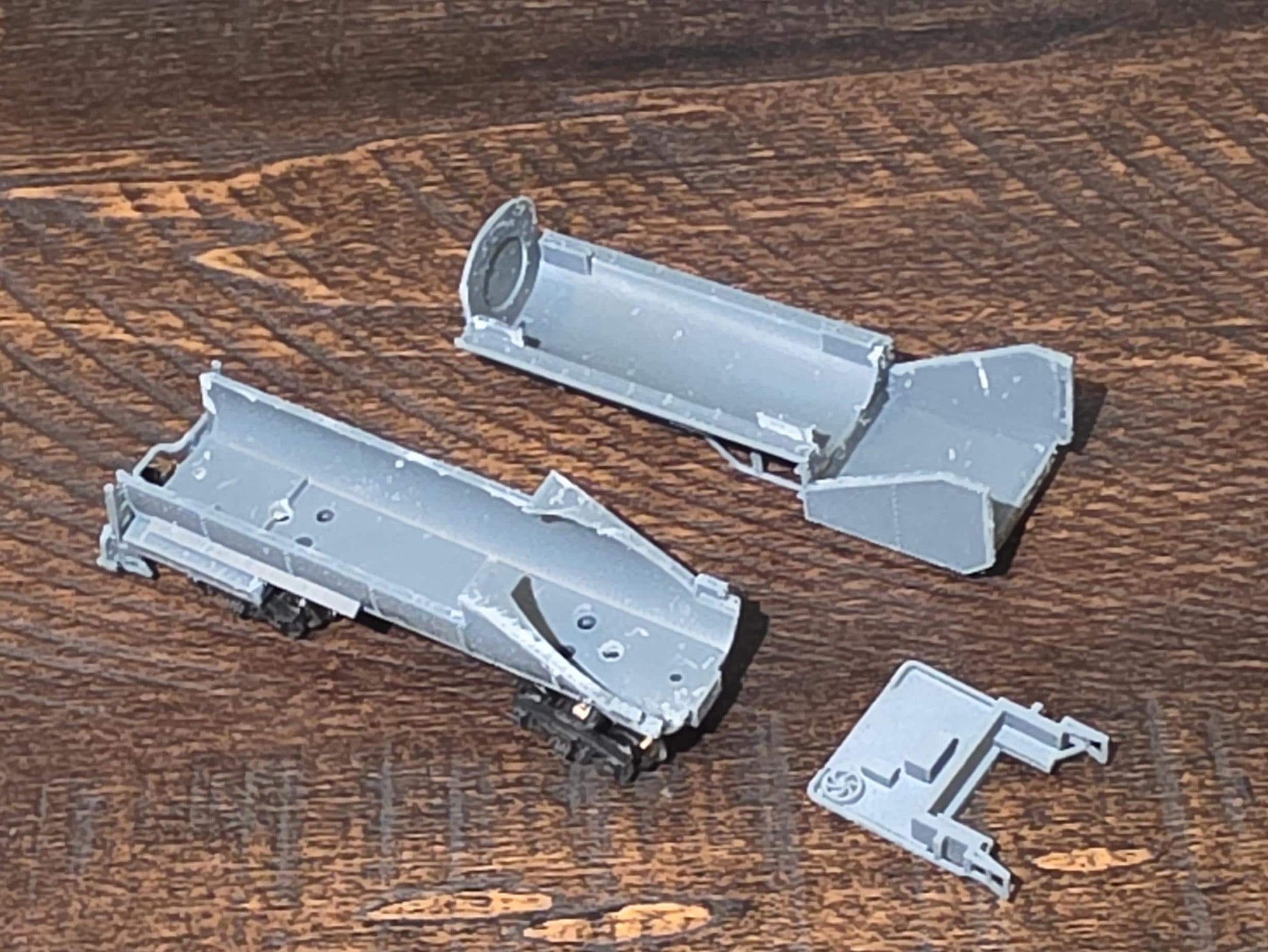

Three-piece construction for easy painting and assembly:

Main tender body

Separate underframe with indexing tabs for a precise fit with pre-formed holes for soldering power-pickup wires

Oil bunker front face with cutout for drawbar or wiring.

1.2 mm drawbar mounting hole designed for a 00-90 screw, making it compatible with common steam models.

Oil bunker cutout at the front to allow wiring to pass cleanly between locomotive and tender.

Assembly Notes:
The included indexing tabs help align the components, but they are not intended to hold the model together on their own. For long-term durability, final assembly should be done with superglue after painting. (Please note: styrene cement will not bond to resin.)

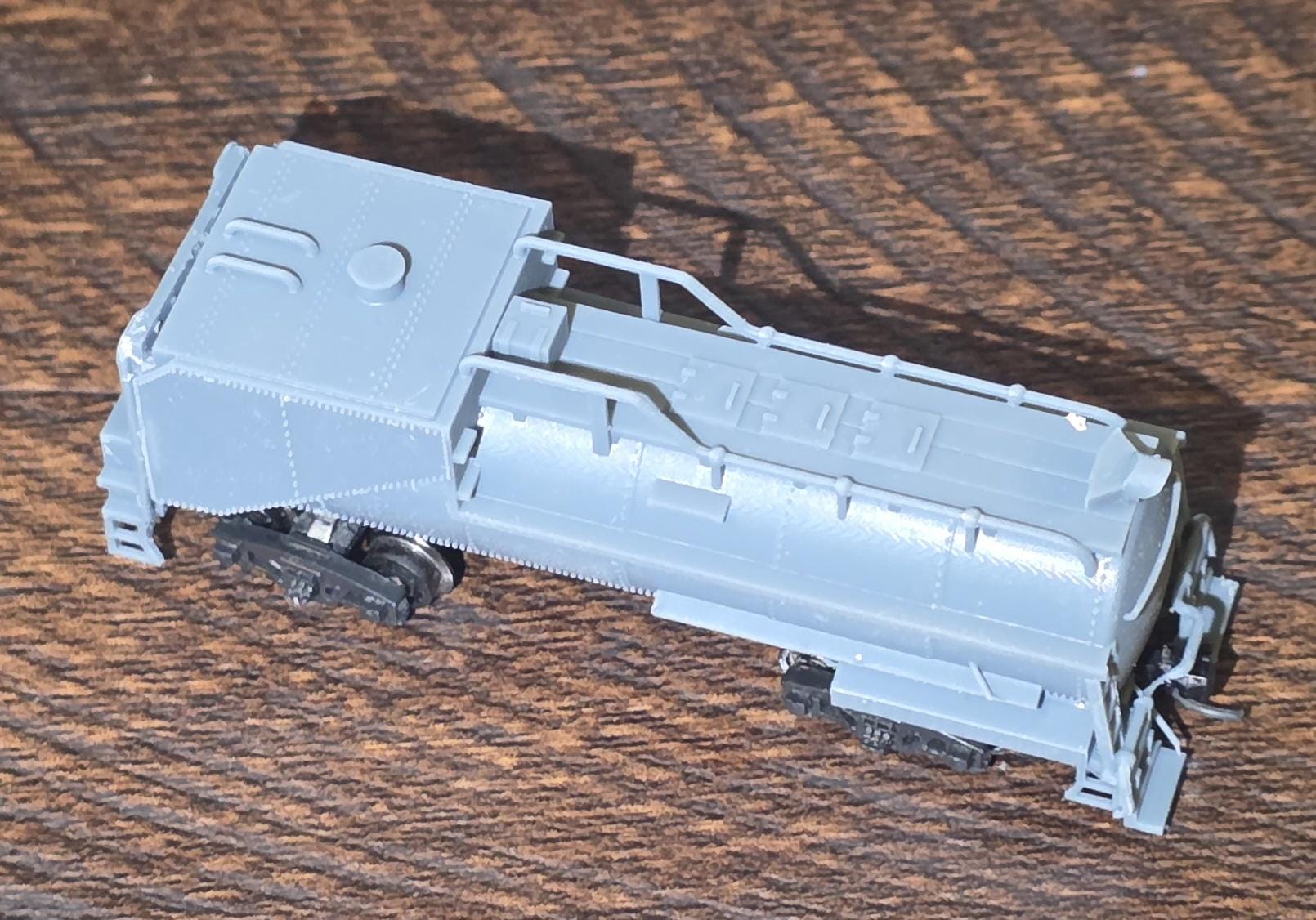

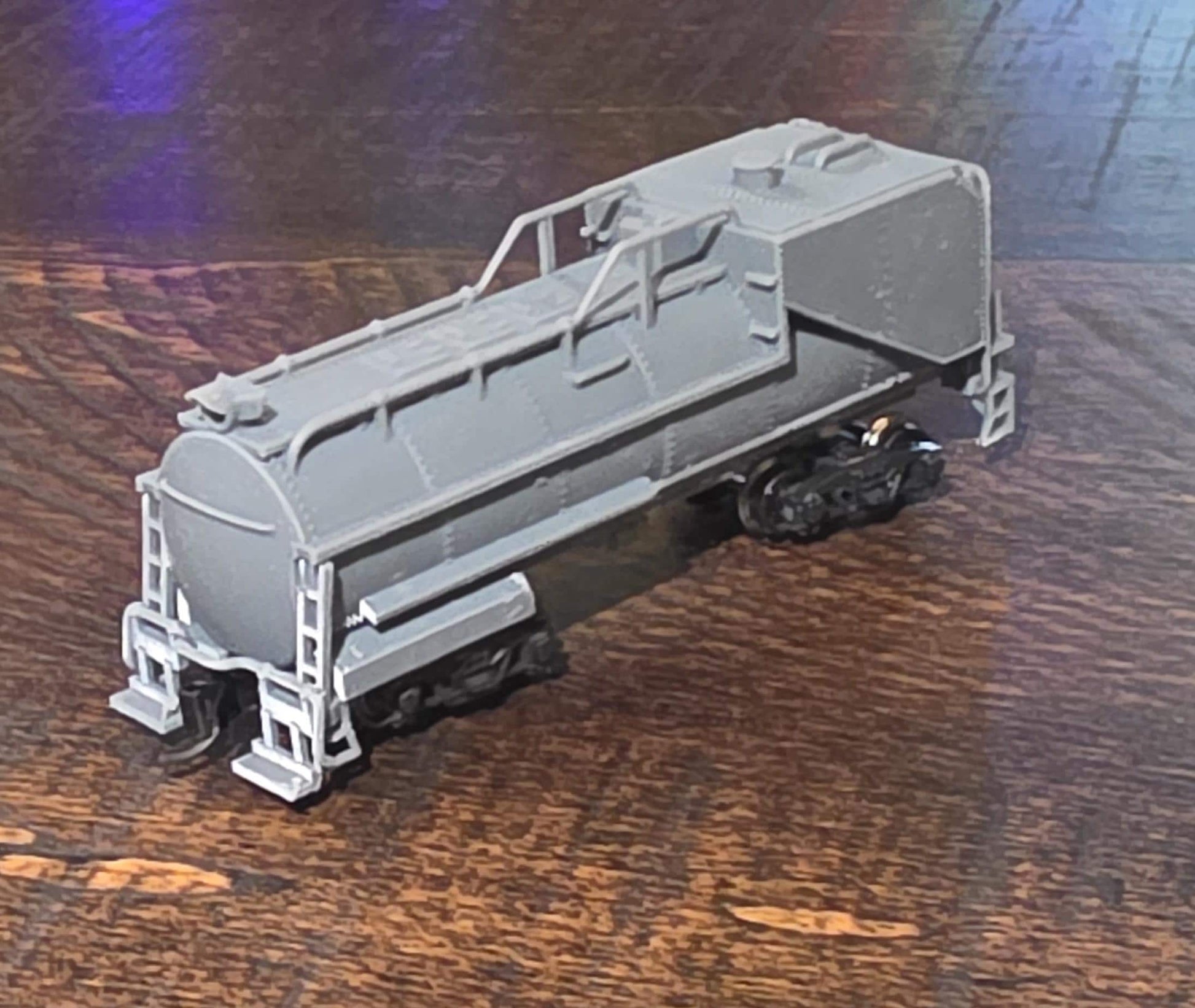

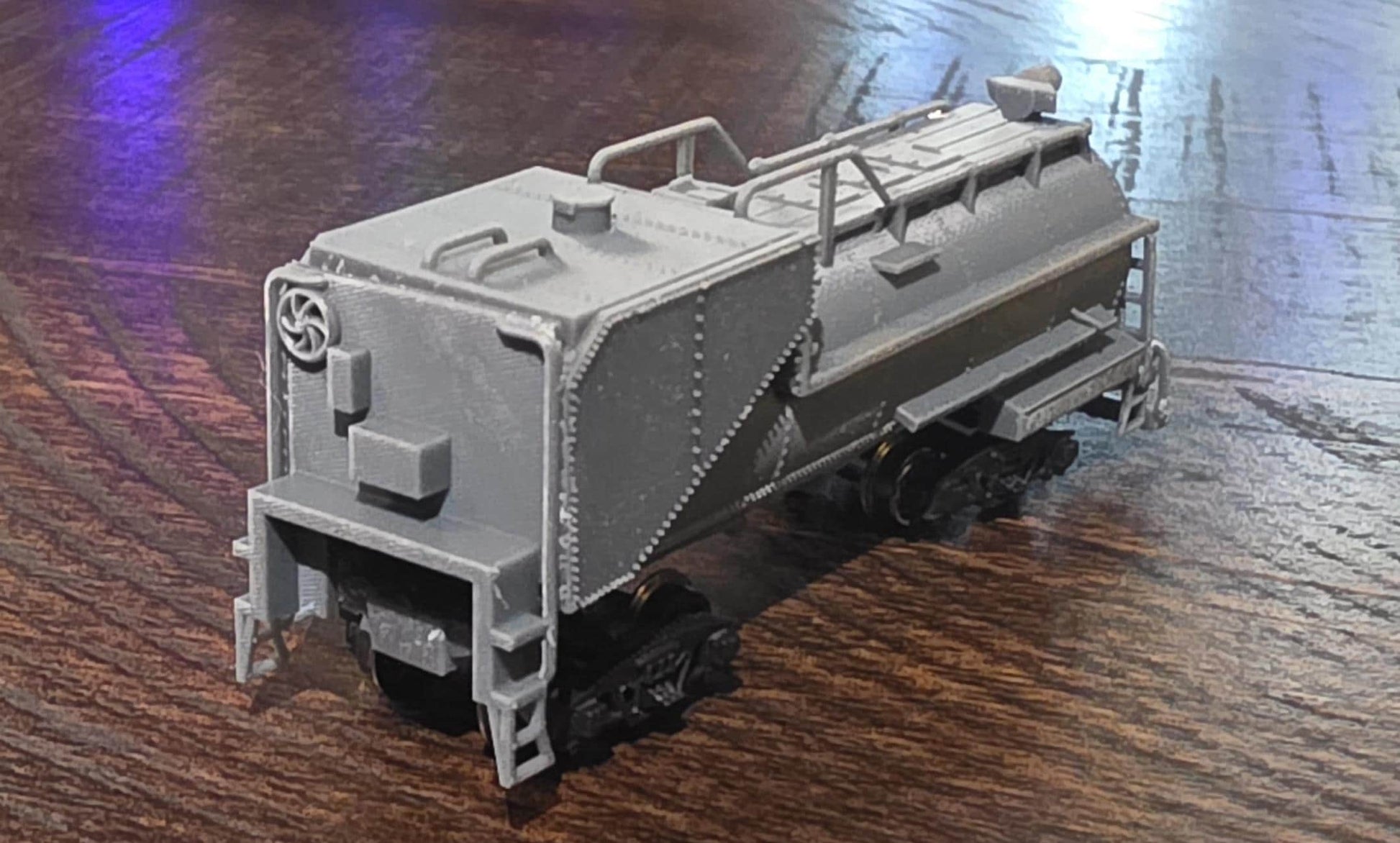

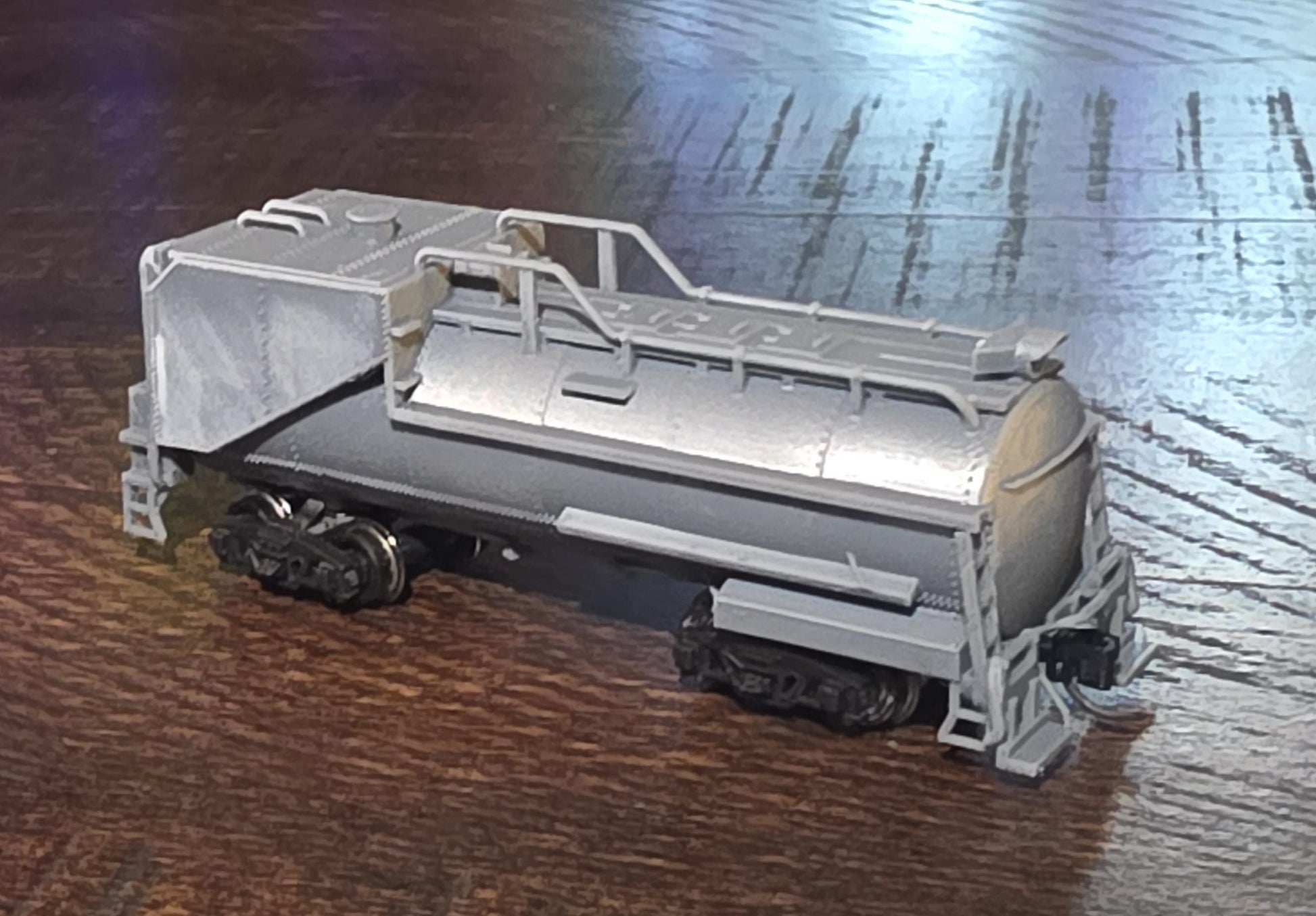

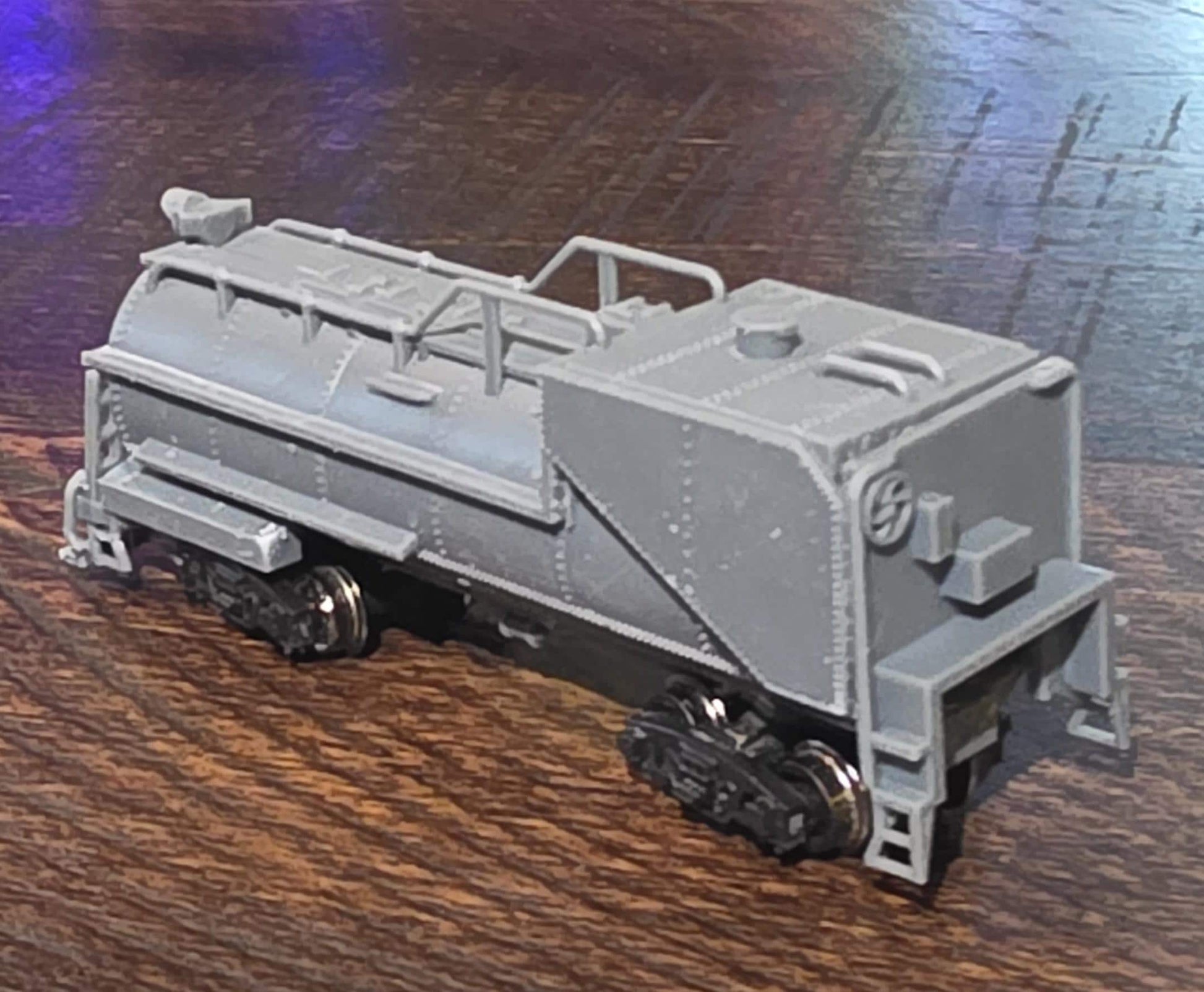

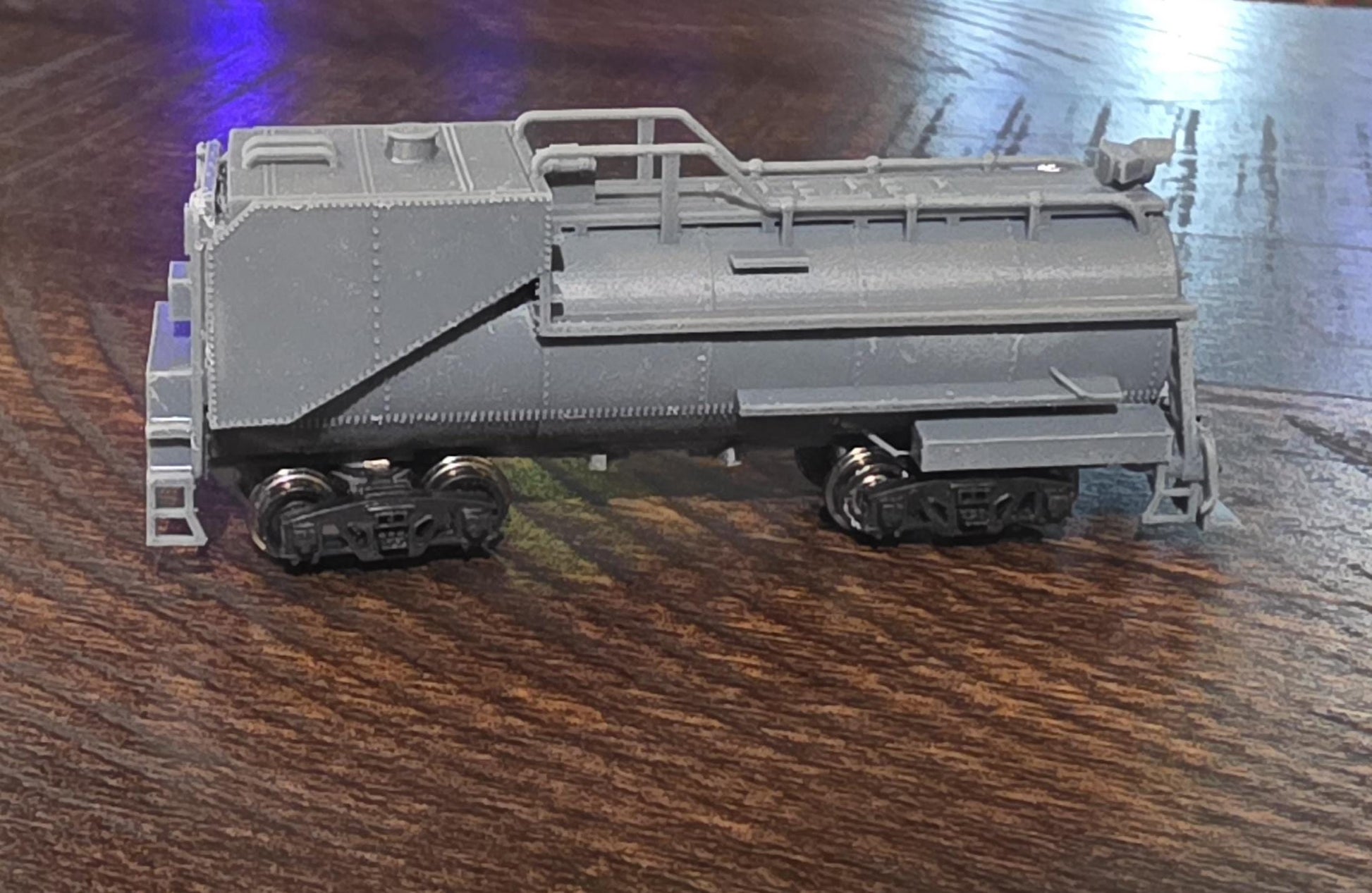

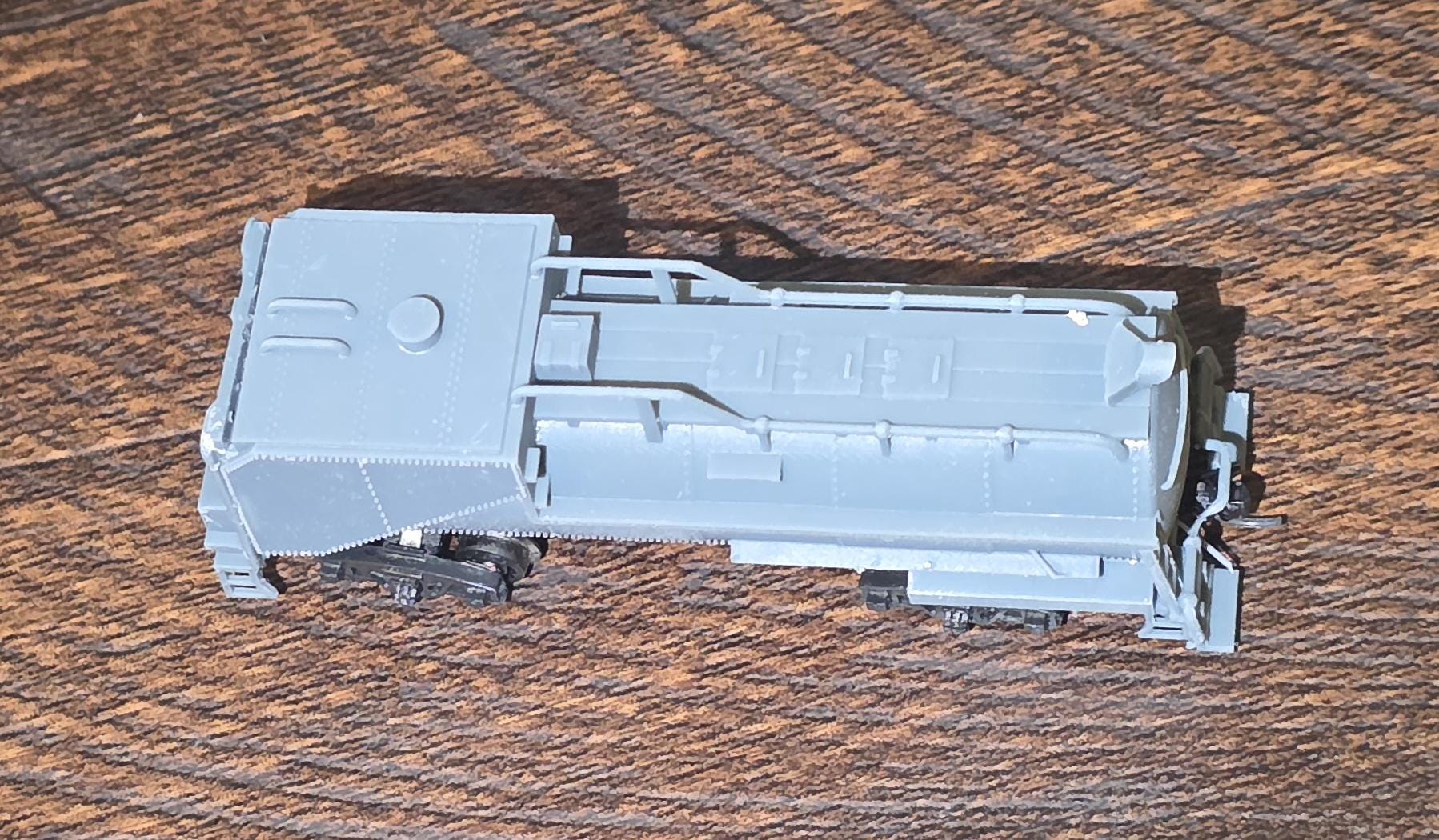

photographed with bachmann tender trucks and MTL 1015 couplers (not included)
